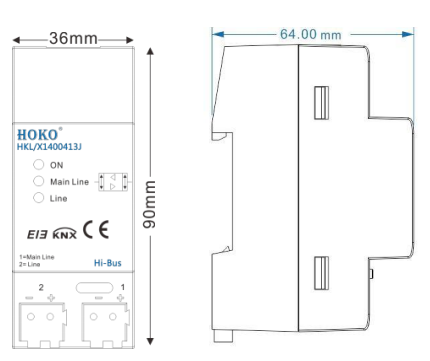

Commodity: KNX/EIB Line Coupler

Model No.: HKL/X 1400413J

Application scenarios:International standard household or building

Smart lighting control system,used for parameter data configuration,

Detecting,KNX/EIB installation,sub-line expanding

Product Overview:

Also used as a line repeater. The line repeater provides a filter table where all group packets present in the over current table are routed or otherwise blocked, reducing the bus load. The filter take us automatically generated by the ETS software tool based on the commissioning system.

Key Feature:

• Each branch line needs to use an independent power supply
• Electrical isolation between main and branch lines,but forwarding of messages between them(no fitter table)
• Physical addressing error packets not be sent repeatedly;
• No need to set up a filter table;
• The maximum number of devices for a branch line can be expanded max up to 256(4 branch line) .
