PRODUCT

ENTERPRISE BRIEF INTRODUCTION

KNX Smart Lighting Switch Actuator

Application Scenarios:Office buildings,shopping malls,libraries, convention and exhibition centers and other occasions that require intelligent control of lighting

PRODUCT OVERVIEW

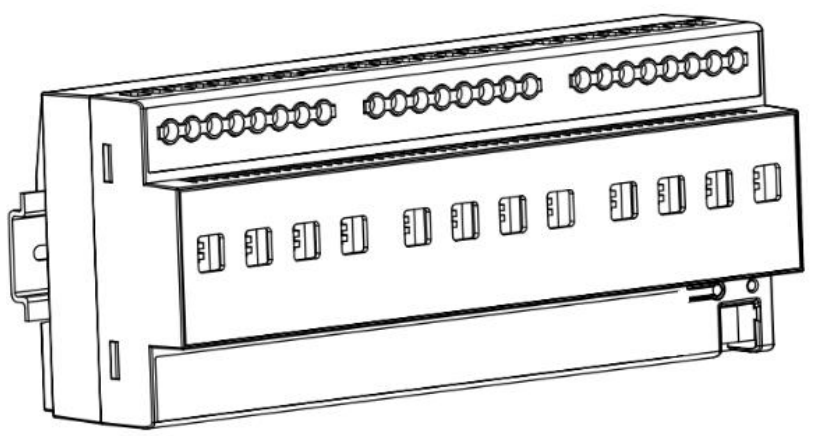

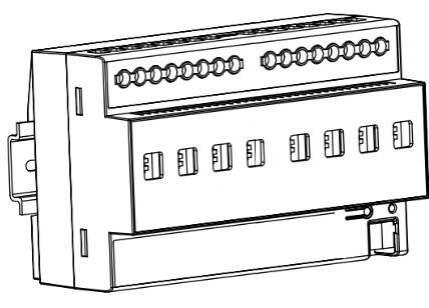

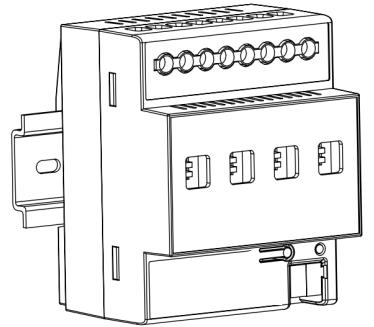

The actuator series products are modular installation equipment,according to the number of circuits,there are 4 channels,8 channels,12 channels of output,according To different functions,there are two kinds of current detection and ordinary two.The terminal of the device connected to the system uses an EIB but terminal block.The Actuator does not require additional supply voltage and is directly connected to the AC power supply.The assignment of physical addresses as well as the setting of parameters can be done using the engineering tool software ETS(version ETS 5.6.5 or later).Switching actuators can switch from 4 to 12 independent electrical AC Loads,with a maximum load current of 16A output from each on/off actuator,all of which can be manually turned on or off.The switching status is visible.

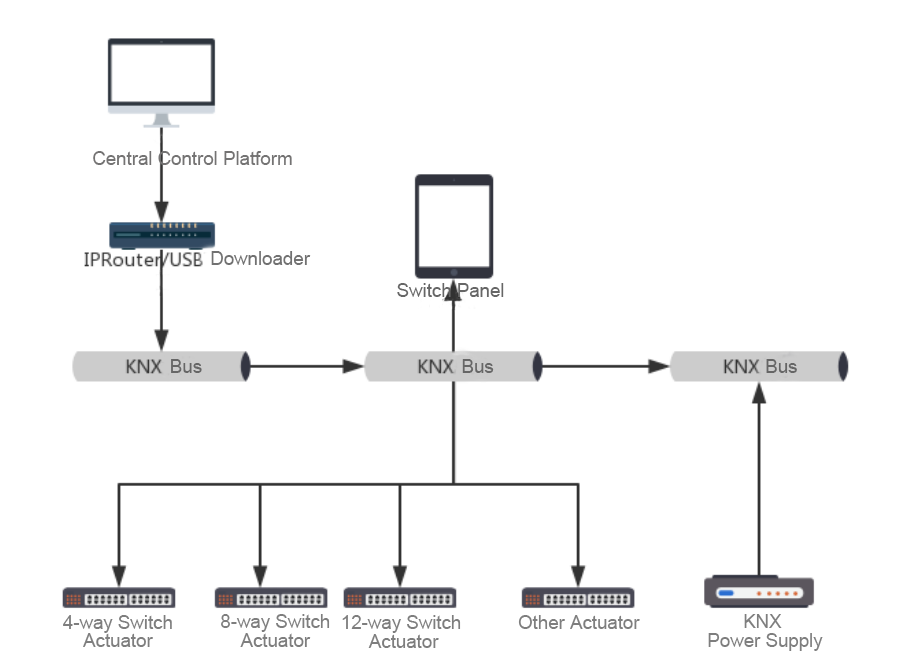

KNX SYSTEM TOPOLOGICAL DIAGRAM

KEY FEATURE

Delay on/off time function
Scene and preset control:8-bit/1-bit
Status value query reply
Mandatory operation and safety insurance function
Overload and under load detection,protection function setting
Relay switch position selection after bus voltage disconnection and recovery
Measurement of channel current and power
Total device current and total power can be reported to the bus
Monitoring the channel current the total device current,alarm when abnormal
More functions customizable

Basic Parameter
Item	Data		Notes
KNX interface	Baud rate：9600		EIB terminal wiring
Interference Index
Electrostatic discharge		Ⅲ
Radio frequency electromagnetic field radiated		Ⅲ	Ⅲ
Electrical fast Transient pulse		Ⅲ
Surge		Ⅲl	Ⅲ	I
Radio frequency conduction		Ⅲ
Working Environment
Working voltage	21-30V		Bus Supply
EIB/KNX current Power consumption	<12mA
EIB/KNX Power Consumption	Max.360mW
Output Normal Value	Model	HKL/K0416412C HKL/K0416412J	HKL/K0816412C HKL/K0816412J	HKL/K1216412C HKL/K1216412J
	Channel	4	8	12
	Un(rated Voltage)	250VAC(50-60HZ)	250VAC(50-60HZ)	250VAC(50-60H Z)
	In (rate current)	16A	16A	16A
	Max Switching Current	20A/250VAC	20A/250VAC	20A/250VAC
	Max load loss	2w	6w	8w

	Current detecting range *	50mA-16A	50mA-16A	50mA-16A
	Min detecting load *	10w	10w	10w
	Current detecting Accuracy *	±5%	±5%	±5%
Output life	Mechanical life	>1000000 times
	Electrical life	>10000 times
Out on/off time	Single channel Relay operation cycle	50ms
	Starting on/off delay time	20ms
connection	EIB/KNX	EIB terminal(diameter 0.8mm)
	Load wiring terminal	Screw wiring terminal

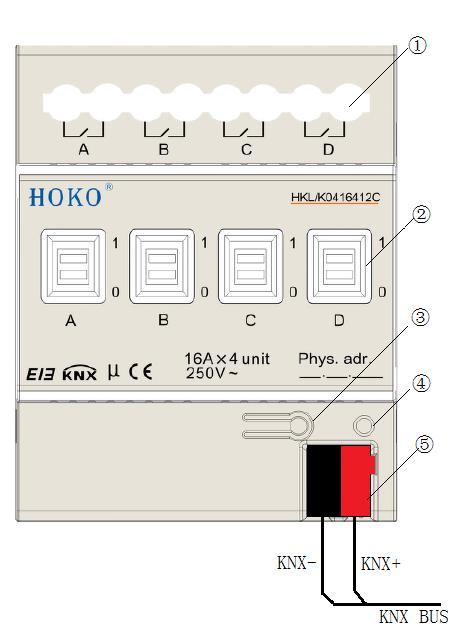

Operation & instructions	Red LED & button	Physical address assignment
	Green LED flicker	Show application layer normally working
	Green LED constant lighting Or extinguish	Downloading data or working abnormal
	Touch point position	Close - channel open
		Break off-channel close
Shell protection	IP20
Safety grade	Ⅱ
Environment temperature	working	-5℃~+45℃
	storage	-25℃~+70℃
	transportation	-25℃~+70℃
humidity	5-95%,no condensation
appearance	ABS shell		Flame retardant UL94V-0
installation	DIN rail module parts		35mm din rail

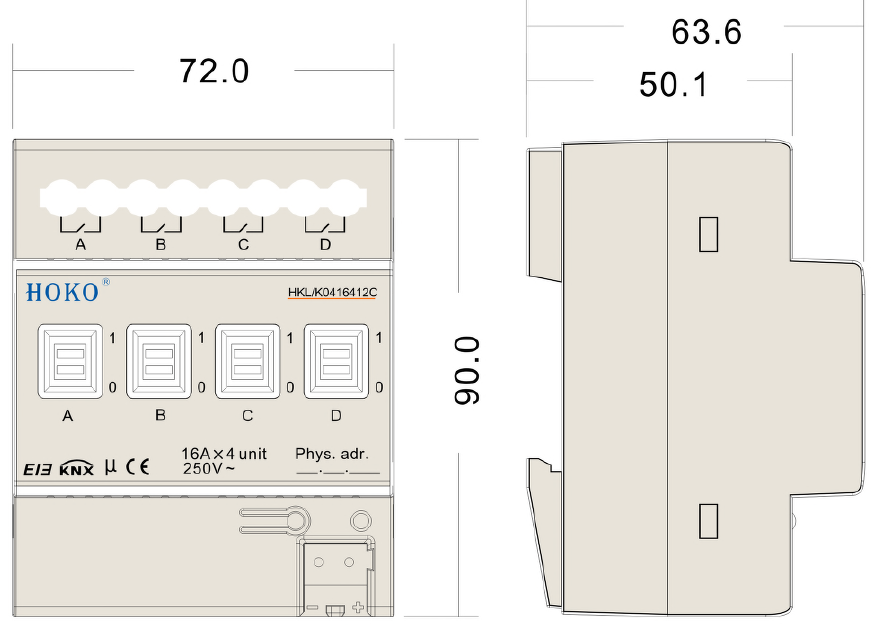

Dimension	HKL/K0416412C HKL/K0416412J		729064MM

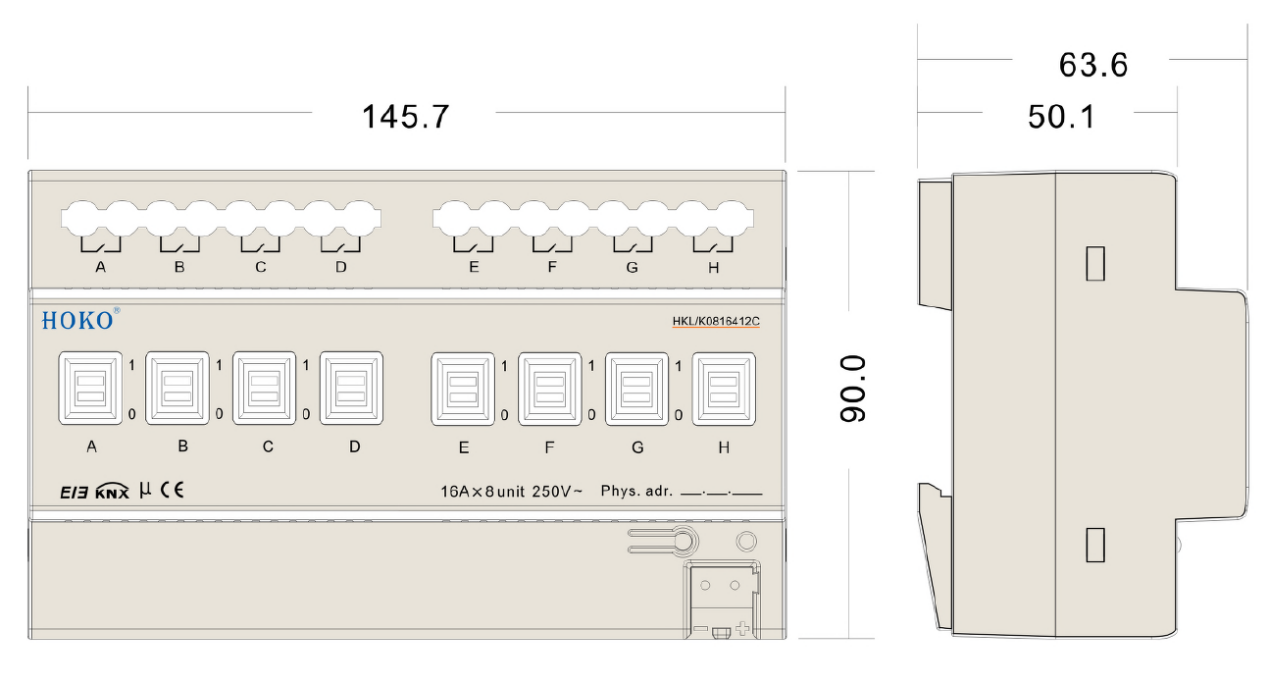

	HKL/K0816412C HKL/K0816412]		1459064MM

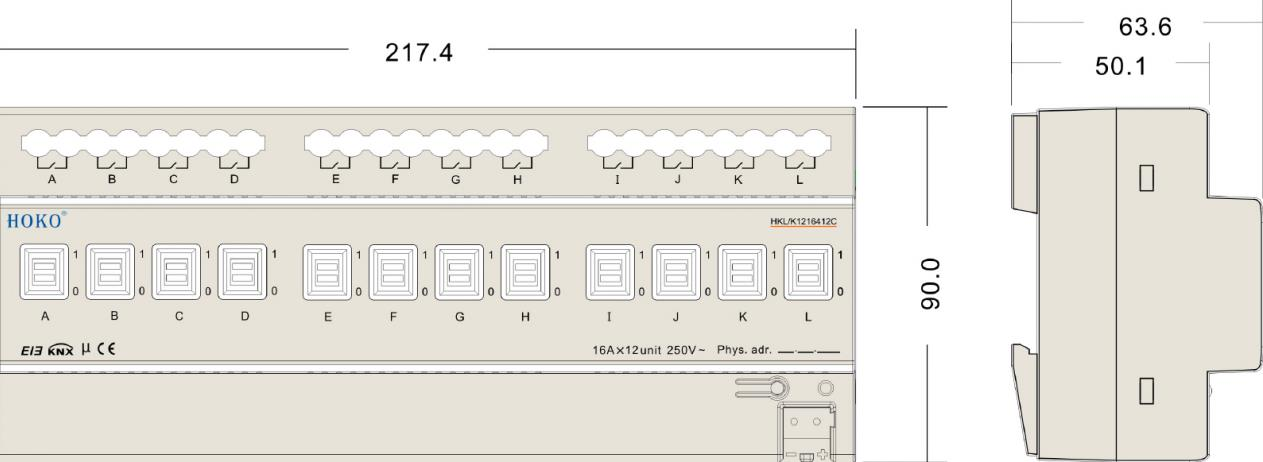

	HKL/K1216412C HKL/K1216412J		2169064MM
Weight	HKL/K0416412C HKL/K0416412J		260g 220g
	HKL/K0816412C HKL/K0816412J		460g 420g

Lamp load expected
Electrical life	100000 cycle	30000 cycle
Incandescent light lamp	1250W	2500 W
No compensation type fluorescent lamp	1250W	2500 W
Parallel compensation type Fluorescent lamp	650W/70μF	1300W/140μF
Double tube fluorescent lamp	2x1200W	2x2500W
230VAC iodine-tungsten lamp/halogen lamp	1200W	2500 W
Low voltage halogen lamp with inductor transformer	1000W	2000W
Low voltage halogen lamp with electric transformer	500VA	500VA
No compensation type mercury / sodium lamp	1000W	2000W
Parallel compensation type mercury / sodium lamp	1000W/70μF	2000W/140μF
No compensation type alkyd resin lamp	800W	1600W
Parallel compensation alkyd resin lamp	560W/70μF	1100 W/140μF
